SATELLITE PARAMETERS


SATELLITE FEED
DOWNLINK FREQUENCY
SYMBOL RATE
FEC
SERVICE ID
GEOGRAPHICAL REGIONS
MEASAT-3A at 91.4°E
4 040 MHz, H-Pol
28 600
5/6
3
Asia (Southeast, South and Central), and Australia
INTELSAT 805 at 55.5°W
3 808 MHz, V-Pol
26 666 MS/s
7/8

South and North America and Europe
YAMAL 300K at 90.0°E
11 670 MHz, V-Pol
14 400 MS/s
5/6

Russia, Asia and Europe
YAHSAT 1A at 52.5°E
11 977 MHz,H-Pol
11 996 MHz,V-Pol
27 500 MS/s
27 500 MS/s
8/9
5/6

Middle East,North Africa
Middle East,Asia
THAICOM 5 at 78.5°E
3 551, H-Pol
13 333
3/4
10
Asia, Middle East, Europe and Africa
INTELSAT 805 at 55.5°W
3 779, V-Pol
3 590
3/4
1
South and North America and Europe
AZERSPACE-1
3 730, V-Pol
30 000
3/4

Africa & Europe
EUTELSAT 28A at 28.5°E
11 681, V-Pol
27 500
2/3

UK & Europe
Hot Bird at 13°E
10 815, H-Pol
27 500
5/6
17315
Europe, North Africa and Middle East

TECHNICAL REACH

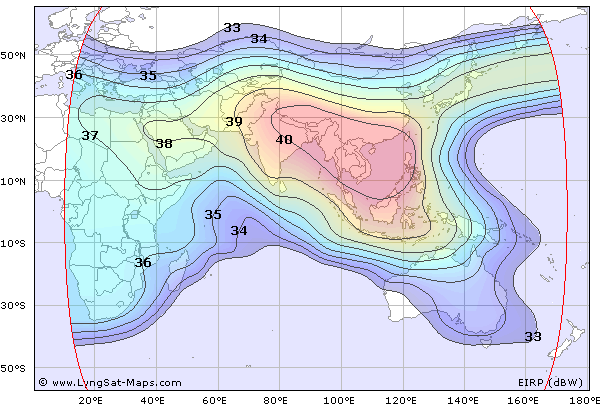

MEASAT-3A at 91.4°E
C Band
EIRP (dBW)
Size (cm)
>42
80
42
80-100
41
90-115
40
100-125
39
115-145
38
125-160
37
145-180
36
160-200
35
180-225
34
200-255
33
225-285
32
255-320
31
285-360
30
320-400
29
360-450
28
400-505
27
450-570
26
505-640
<26
>570
INTELSAT 805 at 55.5°W
C Band
EIRP (dBW)
Size (cm)
>42
80
42
80-100
41
90-115
40
100-125
39
115-145
38
125-160
37
145-180
36
160-200
35
180-225
34
200-255
33
225-285
32
255-320
31
285-360
30
320-400
29
360-450
28
400-505
27
450-570
26
505-640
<26
>570
YAMAL 300K at 90.0°E
Ku Band
EIRP (dBW)
Size (cm)
50
50-60
49
55-65
48
60-75
47
65-85
46
75-95
45
85-105
44
95-120
43
105-135
42
120-150
41
135-170
40
150-190
39
170-215
38
190-240
YAHSAT 1A at 52.5°E (MENA)
Ku Band
EIRP (dBW)
Size (cm)
51
50
>50
50-75
48
60-90
46
90-120
44
120
44
>120
YAHSAT 1A at 52.5°E (EAST)
Ku Band
EIRP (dBW)
Size (cm)
51
50
>50
50-75
48
60-90
46
90-120
44
120
44
>120
THAICOM 5 at 78.5°E
C Band
EIRP (dBW)
Size (cm)
>42
80
42
80-100
41
90-115
40
100-125
39
115-145
38
125-160
37
145-180
36
160-200
35
180-225
34
200-255
33
225-285
32
255-320
31
285-360
30
320-400
29
360-450
28
400-505
27
450-570
26
505-640
<26
>570
INTELSAT 805 at 55.5°W
C Band
EIRP (dBW)
Size (cm)
>42
80
42
80-100
41
90-115
40
100-125
39
115-145
38
125-160
37
145-180
36
160-200
35
180-225
34
200-255
33
225-285
32
255-320
31
285-360
30
320-400
29
360-450
28
400-505
27
450-570
26
505-640
<26
>570
Azerspace-1
C Band
EIRP (dBW)
Size (cm)
>42
80
42
80-100
41
90-115
40
100-125
39
115-145
38
125-160
37
145-180
36
160-200
35
180-225
34
200-255
33
225-285
32
255-320
31
285-360
30
320-400
29
360-450
28
400-505
27
450-570
26
505-640
<26
>570

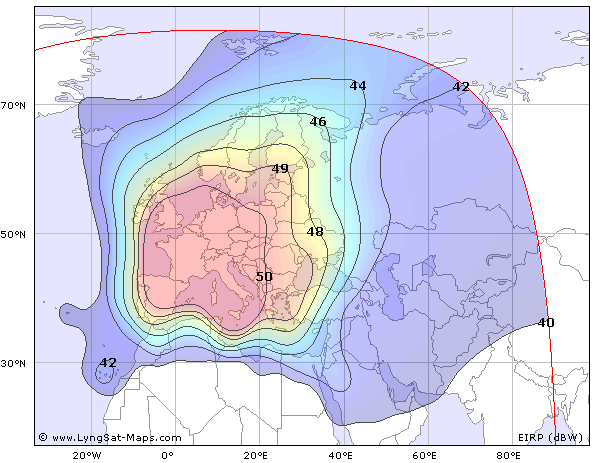

EUTELSAT 28A at 28.5°E
Ku Band
EIRP (dBW)
Size (cm)
51
50
>50
50-75
48
60-90
46
90-120
44
120
44
>120

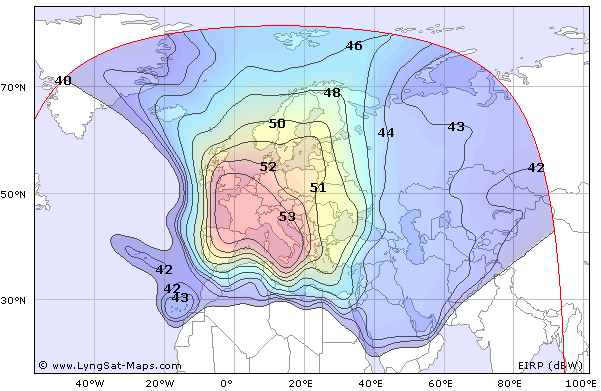

Hot Bird at 13°E
Ku band
EIRP (dBW)
Size (cm)
>50
50
50
50-60
49
55-65
48
60-75
47
65-85
46
75-95
45
85-105
44
95-120
43
105-135
42
120-150
41
135-170
40
150-190
39
170-215
38
190-240
37
215-270
36
240-300
35
270-335
34
300-380
33
335-425
32
380-475
31
425-535
30
475-600
<30
>535
